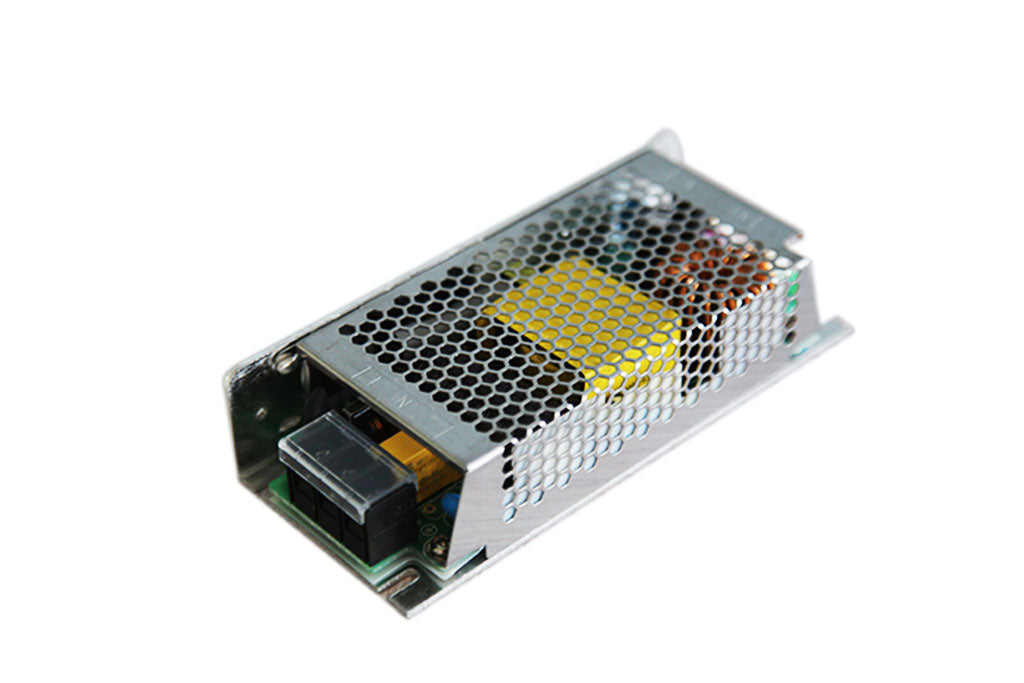

CL LED displays power supply 200W pAS5-200-5 series
$ 43.20
Description CL LED Displays Power Supply 400W PAS5 series Features: Input Parameter: Input Voltage Range: 90～264Vac Input Frequency Range: 47～63HZ(Typ 50/60) Max AC Current: <7A, 100Vac, full load Inrush current: ≤90A, 240V, Full load, 25℃ PF >0.95(AC100~240Vac, full load) Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=250Vac 60HZ) Output Parameter: Dc Voltage Range: 5V(4.5V/4.2V/3.8V/2.8V is available too) Rated Current: 0-80A Max power:400W Ripple & Noise: ≤200mVp-P Efficiency (Typ): 84%(Typ 86%) Vin=110V Full load,25℃, 86%(Typ 90.5%) Vin=230V, full load, 25℃ Voltage Tolerance:±2% Line Regulation: ±1% Load Regulation:±2% Protection： Over voltage protection: 5.4-6.0V Over current protection: 85-110A Over temperature protection: 65-85℃, full load 25℃. Short circuit protection,Hiccup mode, recovers automatically after fault condition is removed Under voltage protection: 60-85Vac, recovery value: 65-90Vac Safety Standards: UL60950, IEC/EN60950, GB4943.1-2011 EMC： FCC Part 15 B,EN55022, EN61000-3-2, GB9254, GB17625 EMI: EN61000-4-2,3,4,5,6,8,11, EN55024 Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S , I/P-FG:1.5KVAC/ 10mA/ 60S , O/P-F/G: 500Vdc/10mA/ 60S Isolation Resistance:I/P-O/P:≥10MΩ@ 500Vdc,I/P-F/G:≥10MΩ@ 500Vdc,O/P-F/G:≥10MΩ@ 500Vdc Leakage current: I/P-FG: ≤3.5mA , I/P-O/P:≤0.25mA (240Vac/60Hz) Others: Working Temperature:-30℃ ～ 60℃ Working Humidity:5%～90%RH Storage temperature: -40℃～ 80℃ Ventilation by DC fan Dimension (L*W*H): 195*115*30mm Carton Dimension: 40*31*18.5 cm Packing:16PCS/16.7KG/0.04CBM MTBF:150K hours (MIL-HDBK-217F (25℃ ) 3 years warranty
