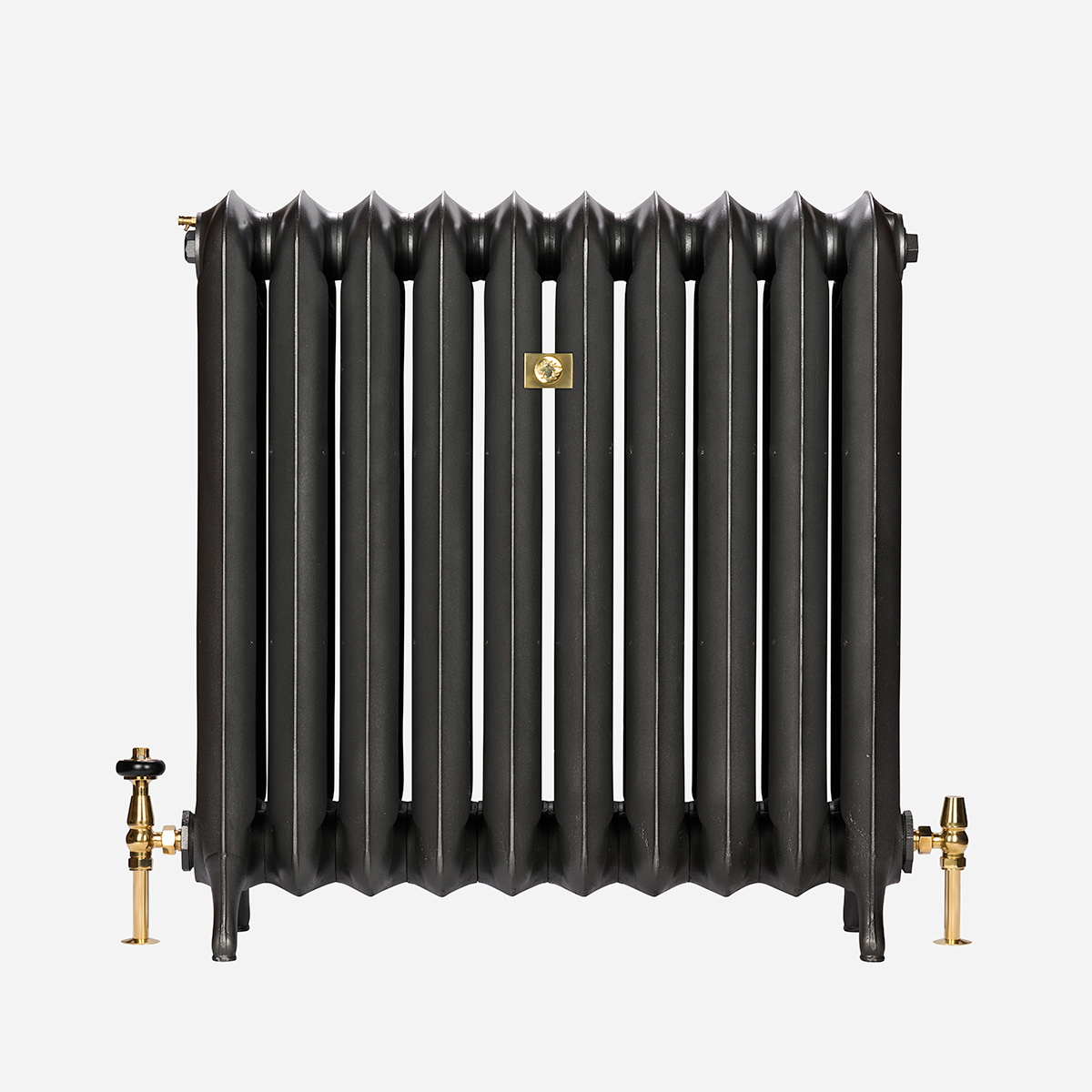

Ideal Plain 4 Column 32in
$ 96.83
Technical Data Model Specifications Attribute Value Height With Legs (mm) 813 Height Without Legs (mm) 756 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 279 Mid Section Depth (mm) 267 Output (ΔT50, W) 224 Output (ΔT30, W) 115 Interaxis Distance (mm) 645 Section Length (mm) 76 Internal Volume (L) 3.6 Empty Leg Section Weight (kg) 15.8 Empty Mid Section Weight (kg) 14.2 Factor, Km N/A Exponent, n N/A Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-NRC-IP-4C32-4 4 334 896 460 1 £0.00 11468 ORC-NRC-IP-4C32-7 7 562 1568 805 1 £0.00 11468 ORC-NRC-IP-4C32-8 8 638 1792 920 1 £0.00 11468 ORC-NRC-IP-4C32-10 10 790 2240 1150 1 £0.00 11468 ORC-NRC-IP-4C32-11 11 866 2464 1265 1 £0.00 11468 ORC-NRC-IP-4C32-21 21 1626 4704 2415 1 £0.00 11468 ORC-NRC-IP-4C32-23 23 1778 5152 2645 1 £0.00 11468 Related products Duchess Scroll 1 Column 39in From: £0.00 Ideal Plain 1 Column 23in From: £0.00 Royal School 36in From: £0.00 Royal School 30in From: £0.00
