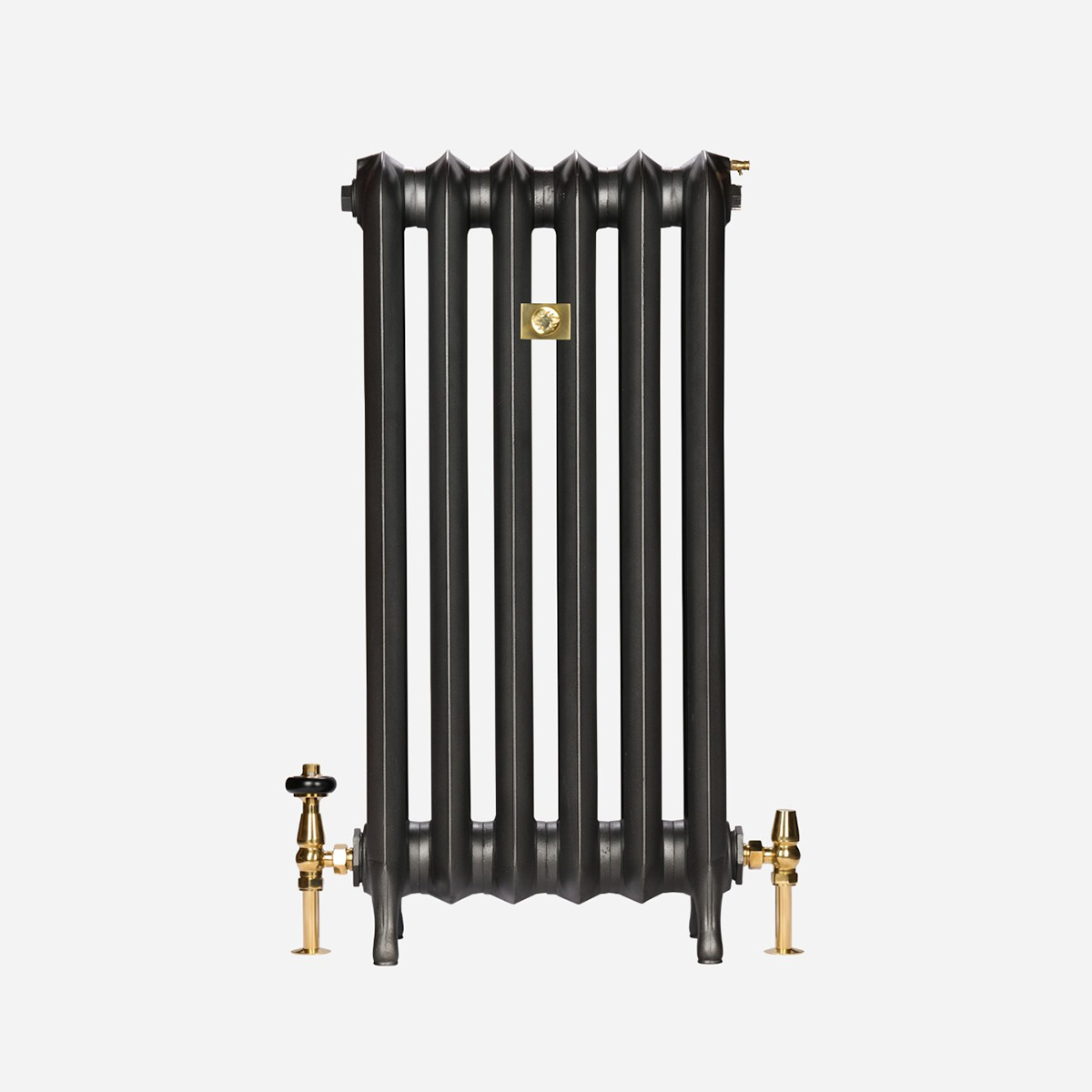

Ideal Plain 3 Column 38in
$ 99.11
Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 1.17 Height With Legs (mm) 965 Height Without Legs (mm) 905 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 213 Mid Section Depth (mm) 183 Output (ΔT50, W) 156 Output (ΔT30, W) 80 Interaxis Distance (mm) 814 Section Length (mm) 76 Internal Volume (L) 3.5 Empty Leg Section Weight (kg) 16 Empty Mid Section Weight (kg) 14.4 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-NRC-IP-3C38-8 8 638 1248 640 1 £0.00 8961 Related products Duchess Scroll 1 Column 24in From: £0.00 Duchess 3 Column 39in From: £0.00 Princess 2 Column 30in From: £0.00 Princess Scroll 2 Column 39in From: £0.00
