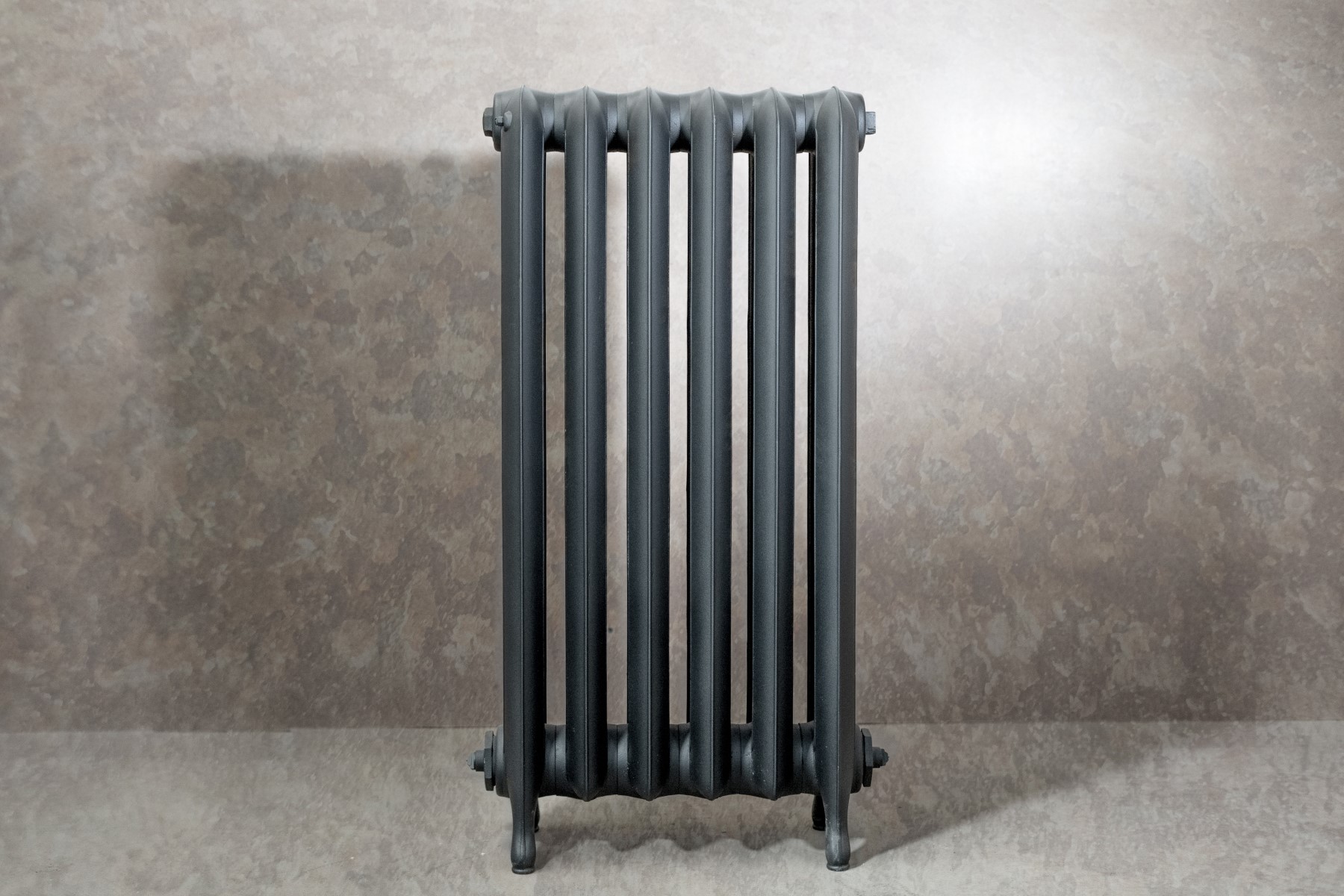

Ideal Plain 2 Column 38in
$ 93.51
Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 1.06 Height With Legs (mm) 965 Height Without Legs (mm) 894 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 213 Mid Section Depth (mm) 187 Output (ΔT50, W) 141 Output (ΔT30, W) 73 Interaxis Distance (mm) 795 Section Length (mm) 76 Internal Volume (L) 3.1 Empty Leg Section Weight (kg) 11 Empty Mid Section Weight (kg) 9.9 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-NRC-IP-2C38-3 3 258 423 219 1 £0.00 8856 ORC-NRC-IP-2C38-5 5 410 705 365 1 £0.00 8856 ORC-NRC-IP-2C38-6 6 486 846 438 1 £0.00 8856 ORC-NRC-IP-2C38-7 7 562 987 511 1 £0.00 8856 ORC-NRC-IP-2C38-8 8 638 1128 584 1 £0.00 8856 ORC-NRC-IP-2C38-9 9 714 1269 657 1 £0.00 8856 ORC-NRC-IP-2C38-10 10 790 1410 730 1 £0.00 8856 ORC-NRC-IP-2C38-11 11 866 1551 803 1 £0.00 8856 ORC-NRC-IP-2C38-12 12 942 1692 876 1 £0.00 8856 ORC-NRC-IP-2C38-15 15 1170 2115 1095 1 £0.00 8856 ORC-NRC-IP-2C38-16 16 1246 2256 1168 1 £0.00 8856 Related products Princess 3 Column 36in From: £0.00 Princess 1 Column 24in From: £0.00 Duchess Scroll 1 Column 36in From: £0.00 Royal School 30in From: £0.00
