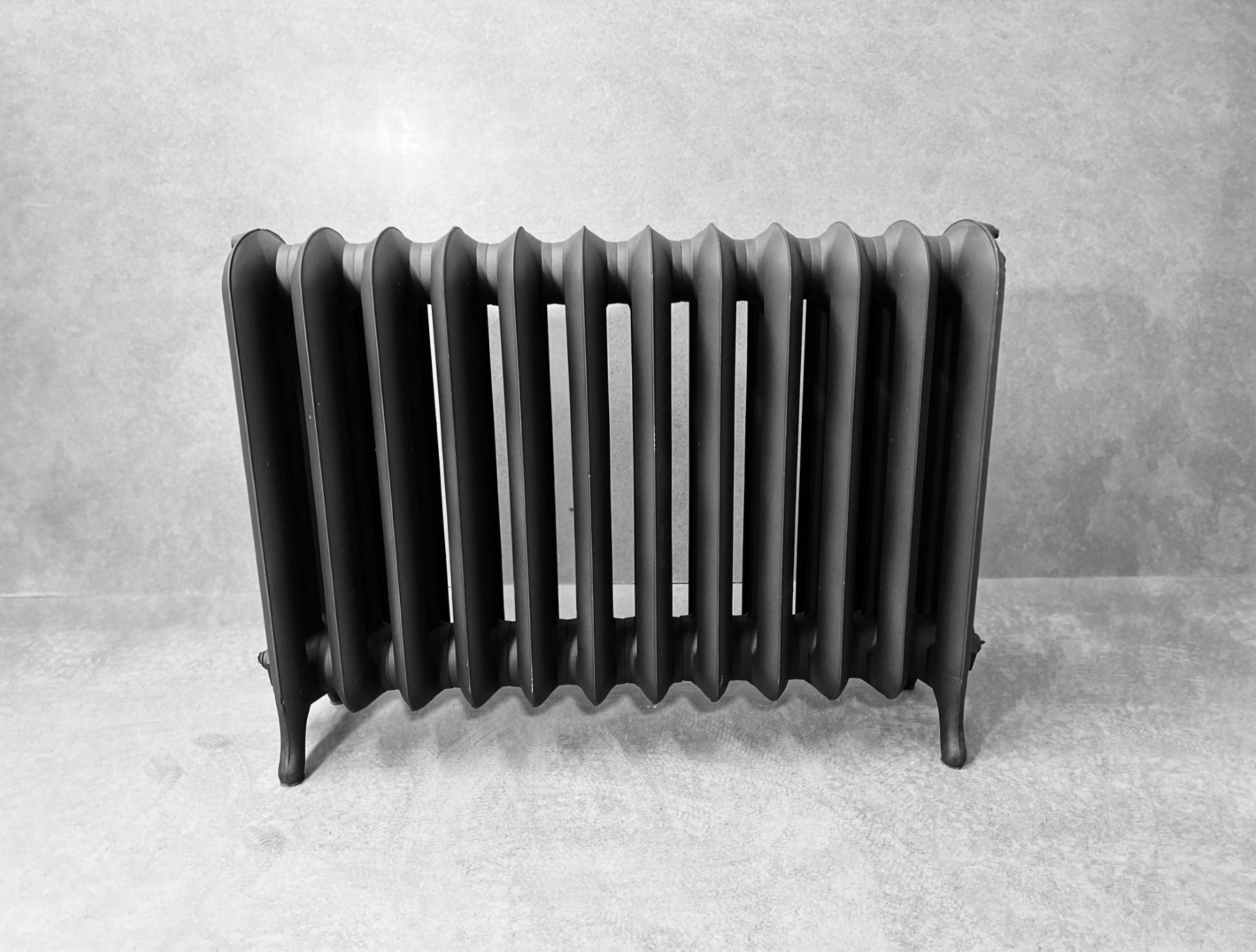

Ideal Plain 2 Column 26in

Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.77 Height With Legs (mm) 660 Height Without Legs (mm) 598 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 213 Mid Section Depth (mm) 187 Output (ΔT50, W) 103 Output (ΔT30, W) 53 Interaxis Distance (mm) 499 Section Length (mm) 76 Internal Volume (L) 2 Empty Leg Section Weight (kg) 8.3 Empty Mid Section Weight (kg) 7.47 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-NRC-IP-2C26-4 4 334 412 212 1 £0.00 8837 ORC-NRC-IP-2C26-5 5 410 515 265 1 £0.00 8837 ORC-NRC-IP-2C26-6 6 486 618 318 1 £0.00 8837 ORC-NRC-IP-2C26-7 7 562 721 371 1 £0.00 8837 ORC-NRC-IP-2C26-9 9 714 927 477 1 £0.00 8837 ORC-NRC-IP-2C26-10 10 790 1030 530 1 £0.00 8837 ORC-NRC-IP-2C26-11 11 866 1133 583 1 £0.00 8837 ORC-NRC-IP-2C26-12 12 942 1236 636 1 £0.00 8837 ORC-NRC-IP-2C26-16 16 1246 1648 848 1 £0.00 8837 Related products Princess Scroll 2 Column 24in From: £0.00 Duchess Scroll 1 Column 24in From: £0.00 Duchess 3 Column 39in From: £0.00 Royal School 30in From: £0.00
