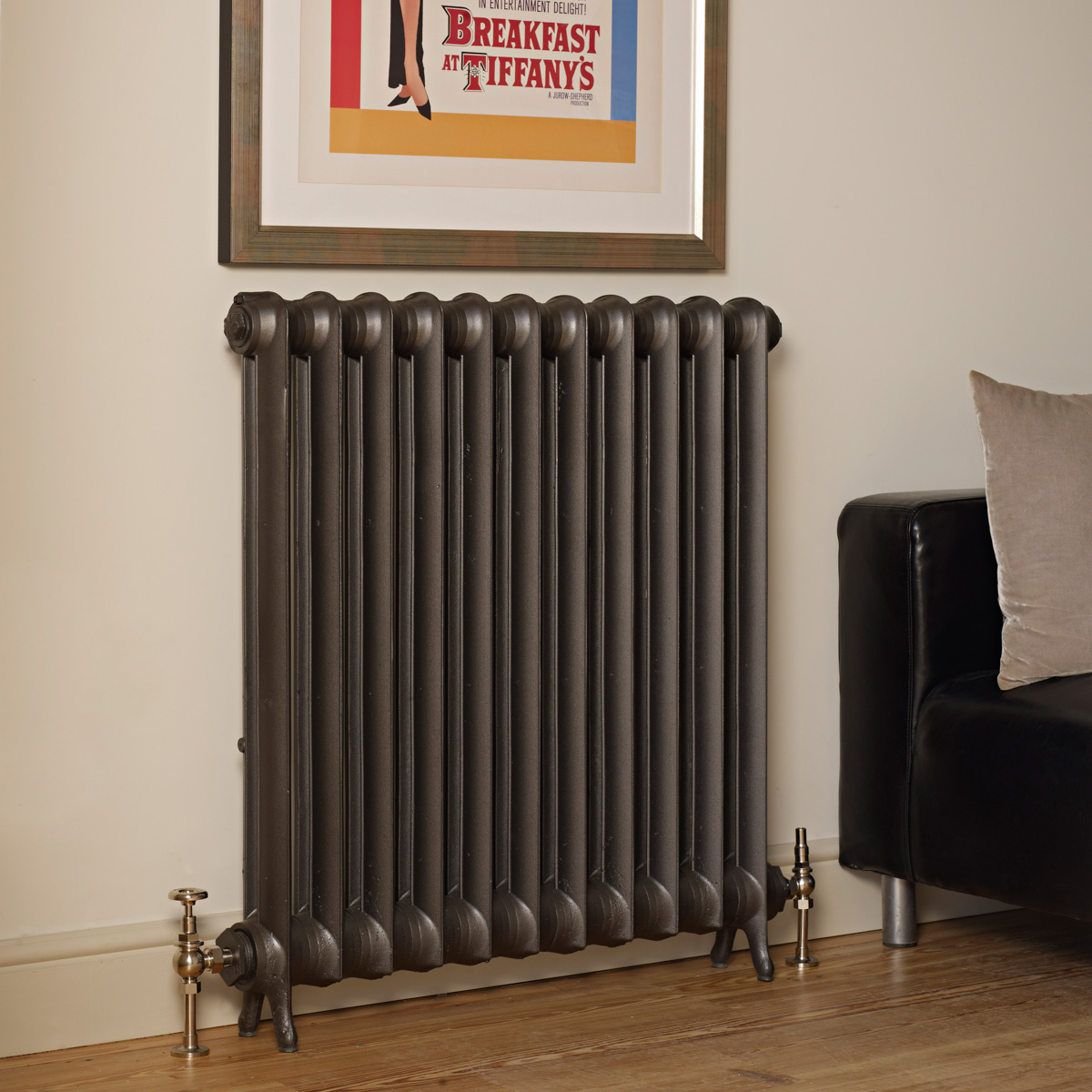

Ideal Plain 1 Column 38in
$ 99.18
Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.86 Height With Legs (mm) 965 Height Without Legs (mm) 895 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 140 Mid Section Depth (mm) 114 Output (ΔT50, W) 114 Output (ΔT30, W) 59 Interaxis Distance (mm) 795 Section Length (mm) 76 Internal Volume (L) 1.3 Empty Leg Section Weight (kg) 8.9 Empty Mid Section Weight (kg) 8 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-NRC-IP-1C38-6 6 486 684 354 1 £0.00 8816 ORC-NRC-IP-1C38-7 7 562 798 413 1 £0.00 8816 ORC-NRC-IP-1C38-8 8 638 912 472 1 £0.00 8816 ORC-NRC-IP-1C38-10 10 790 1140 590 1 £0.00 8816 ORC-NRC-IP-1C38-12 12 942 1368 708 1 £0.00 8816 ORC-NRC-IP-1C38-13 13 1018 1482 767 1 £0.00 8816 ORC-NRC-IP-1C38-14 14 1094 1596 826 1 £0.00 8816 Related products Duchess 1 Column 36in From: £0.00 Royal School 30in From: £0.00 Princess Window 13in From: £0.00 Duchess 1 Column 24in From: £0.00
