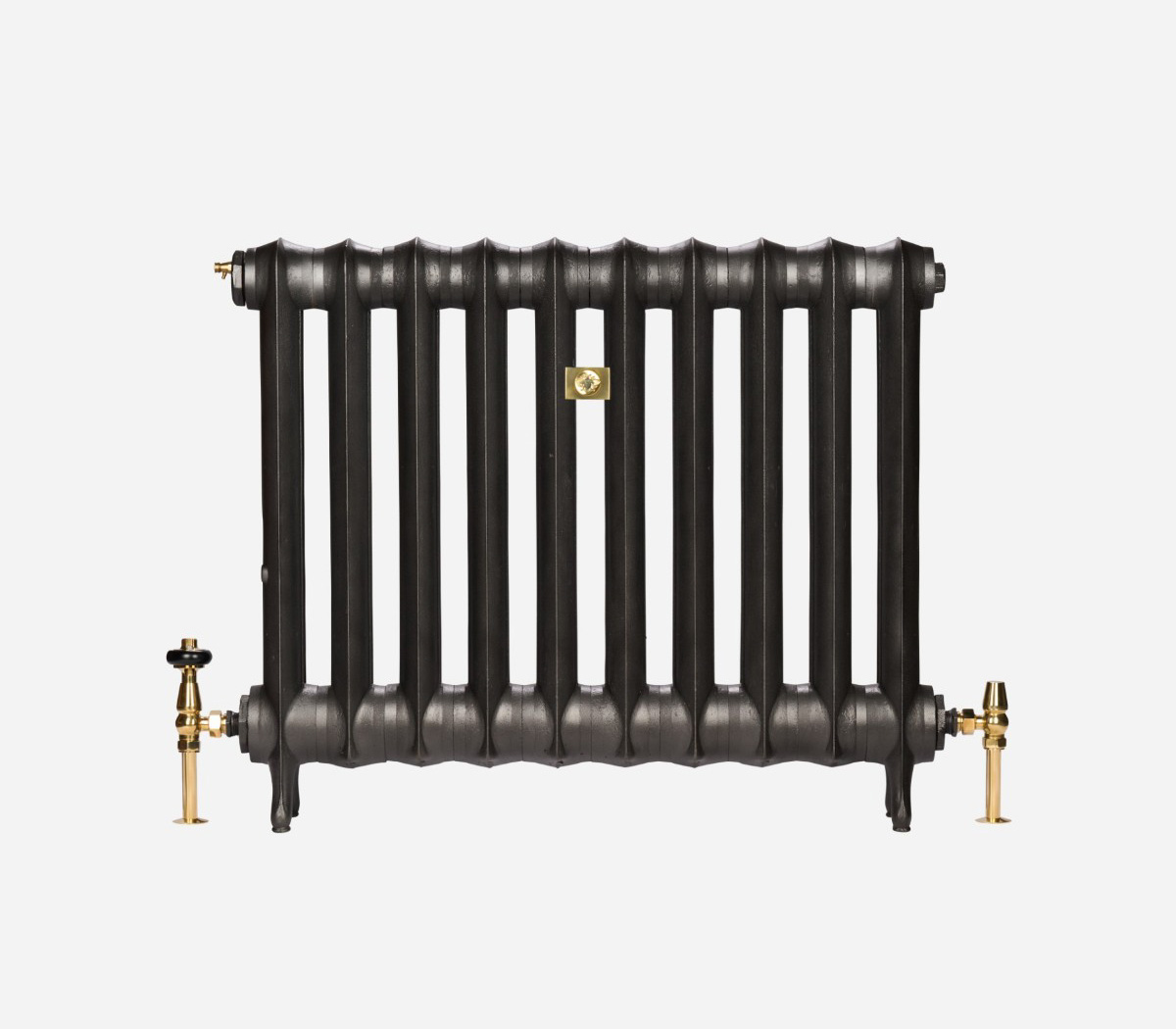

Ideal Plain 1 Column 26in
$ 91.85
Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.57 Height With Legs (mm) 660 Height Without Legs (mm) 603 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 140 Mid Section Depth (mm) 114 Output (ΔT50, W) 76 Output (ΔT30, W) 39 Interaxis Distance (mm) 499 Section Length (mm) 76 Internal Volume (L) 1.1 Empty Leg Section Weight (kg) 6.7 Empty Mid Section Weight (kg) 6 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-NRC-IP-1C26-4 4 334 304 156 1 £0.00 8795 ORC-NRC-IP-1C26-6 6 486 456 234 1 £0.00 8795 ORC-NRC-IP-1C26-7 7 562 532 273 1 £0.00 8795 ORC-NRC-IP-1C26-8 8 638 608 312 1 £0.00 8795 ORC-NRC-IP-1C26-9 9 714 684 351 1 £0.00 8795 ORC-NRC-IP-1C26-10 10 790 760 390 1 £0.00 8795 ORC-NRC-IP-1C26-11 11 866 836 429 1 £0.00 8795 ORC-NRC-IP-1C26-12 12 942 912 468 1 £0.00 8795 ORC-NRC-IP-1C26-17 17 1322 1292 663 1 £0.00 8795 Related products Princess 3 Column 24in From: £0.00 Duchess Scroll 1 Column 24in From: £0.00 Princess 3 Column 36in From: £0.00 Ideal Plain 1 Column 23in From: £0.00
