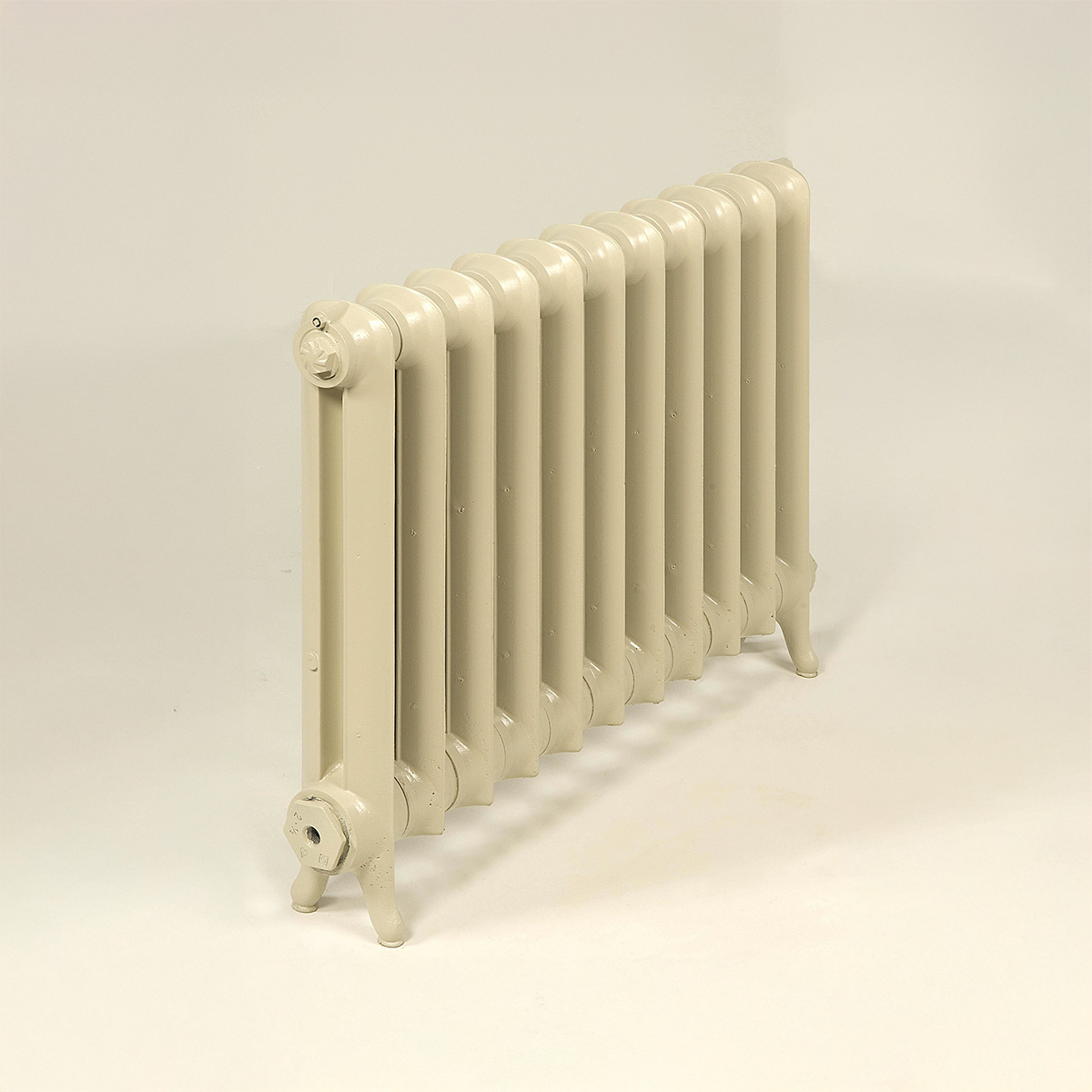

Ideal Plain 1 Column 23in
$ 96.87
Technical Data Model Specifications Attribute Value Exponent, n 1.25 Factor, Km 0.51 Height With Legs (mm) 584 Height Without Legs (mm) 529 Bottom Inlet To Floor (mm) 114 Max Section Depth (mm) 140 Mid Section Depth (mm) 114 Output (ΔT50, W) 68 Output (ΔT30, W) 35 Interaxis Distance (mm) 426 Section Length (mm) 76 Internal Volume (L) 1.1 Empty Leg Section Weight (kg) 6.7 Empty Mid Section Weight (kg) 6 Casting Origin Hull, England Heating Medium Hydronic, One-pipe steam, Two-pipe steam Construction Types Threaded nipples Connection Options BBOE, TBOE, TBSE Sizes Available SKU N Secs Length (L, mm) Output (∆T50, Watts) Output (∆T30, Watts) Delivery pieces Price from ORC-NRC-IP-1C23-6 6 486 408 210 1 £0.00 8787 ORC-NRC-IP-1C23-7 7 562 476 245 1 £0.00 8787 ORC-NRC-IP-1C23-8 8 638 544 280 1 £0.00 8787 ORC-NRC-IP-1C23-9 9 714 612 315 1 £0.00 8787 ORC-NRC-IP-1C23-10 10 790 680 350 1 £0.00 8787 ORC-NRC-IP-1C23-11 11 866 748 385 1 £0.00 8787 ORC-NRC-IP-1C23-14 14 1094 952 490 1 £0.00 8787 Related products Princess 3 Column 24in From: £0.00 Ideal Plain 1 Column 26in From: £0.00 Duchess 1 Column 39in From: £0.00 Duchess 1 Column 36in From: £0.00
